Screw Air Compressor Series-HANDE

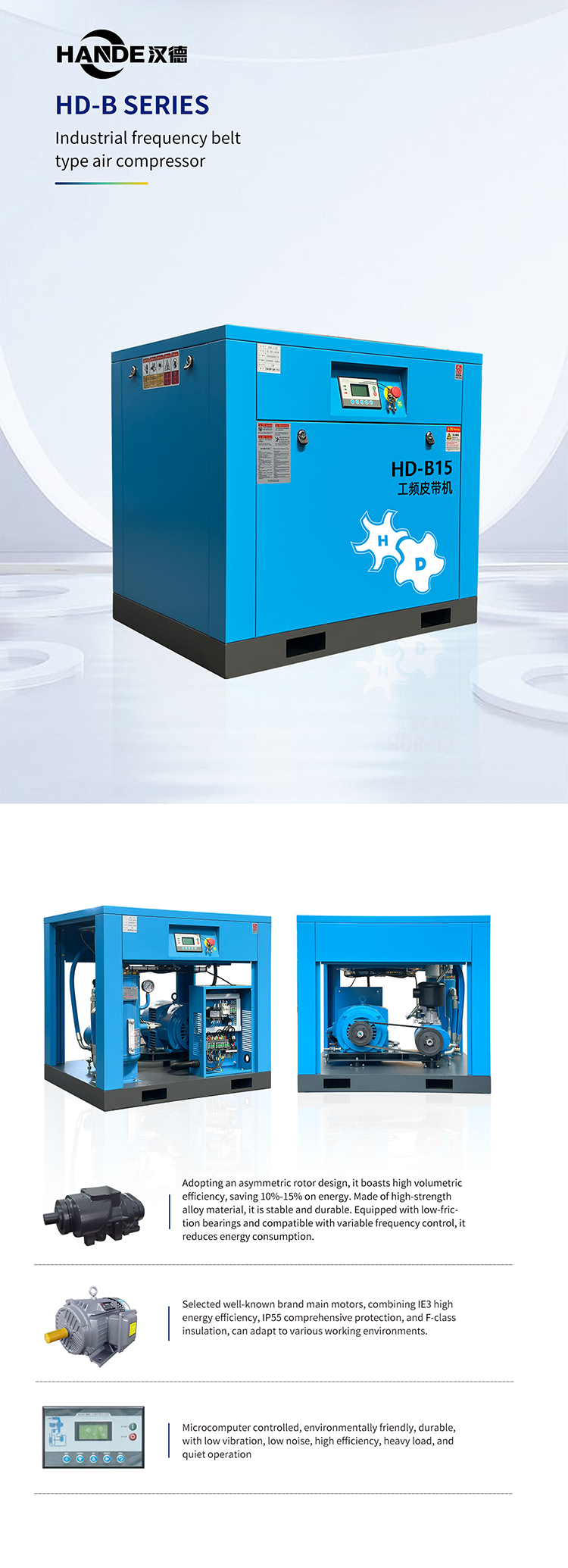

HD-B Series Belt Drive Fixed Speed

PRODUCT MODEL：HD-B4-HD-B37

Motor Power：3.7KW-37KW

Volume flow：3.5m³/min- 38.7m³/min

Working pressure：0.7Mpa -1.25Mpa

Note: Other special standards can be customized. For more details, please consult us

Product Information

Product Features

This series adopts a high-strength screw host, ensuring stable operation and suitability for continuous long-term use with a low failure rate. It delivers stable output pressure, making it ideal for applications with minimal air pressure fluctuation requirements. The unit features a belt-drive system characterized by its simple structure, low belt replacement cost, and easy maintenance. Additionally, the belt absorbs vibrations between the motor and compressor unit, reducing operational noise. This makes it an ideal choice for users with limited budgets or consistent load demands.

Application industry

Mechanical processing pneumatic tools; Automotive manufacturing/maintenance pneumatic tools; Pneumatic conveying and mixing of building materials; Construction of buildings, manufacturing of doors and windows; Valve control and material transportation in chemical plants: Pneumatic control in the power industry; Food packaging; Textile machinery: furniture manufacturing; Mine operation ventilation system; Metal smelting and pneumatic cutting; Agricultural grain conveying and spray equipment; Automated sorting of logistics and warehousing

Product Parameters:

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-B4	0.8	0.4	3.7/5	-5～45	Rp3/4	Air cooling	440	760×600×900
	1.0	0.35
	1.25	0.3
HD-B6	0.8	0.7	5.5/7.5	-5～45	Rp3/4	Air cooling	690	760×600×900
	1.0	0.54
	1.25	0.4
HD-B8	0.8	1.0	7.5/10	-5～45	Rp1/2	Air cooling	710	800×670×930
	1.0	0.8
	1.25	0.6
HD-B11	0.8	1.8	11/15	-5～45	Rp3/4	Air cooling	740	1080×850×1000
	1.0	1.5
	1.25	1.2
HD-B15	0.8	2.1	15/20	-5～45	Rp3/4	Air cooling	1120	1080×750×1000
	1.0	1.9
	1.25	1.5

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-B19	0.8	2.9	18.5/25	-5～45	Rp1	Air cooling	1280	1080×850×1200
		2.5
		2.0
HD-B22	0.8	3.4	22/30	-5～45	Rp1	Air cooling	1520	1080×850×1200
		2.9
		2.3
HD-B30	0.8	4.5	30/40	-5～45	Rp1	Air cooling	1860	1080×850×1200
		4.0
		3.4
HD-B37	0.8	6.0	37/50	-5～45	Rp1-1/2	Air cooling	1930	1200×1000×1500
		5.2
		4.5

Note: The company's products are constantly being optimized, and the parameters are subject to change without prior notice; Different voltage and other special models can be customized, please consult the business.
