Screw Air Compressor Series-HANDE

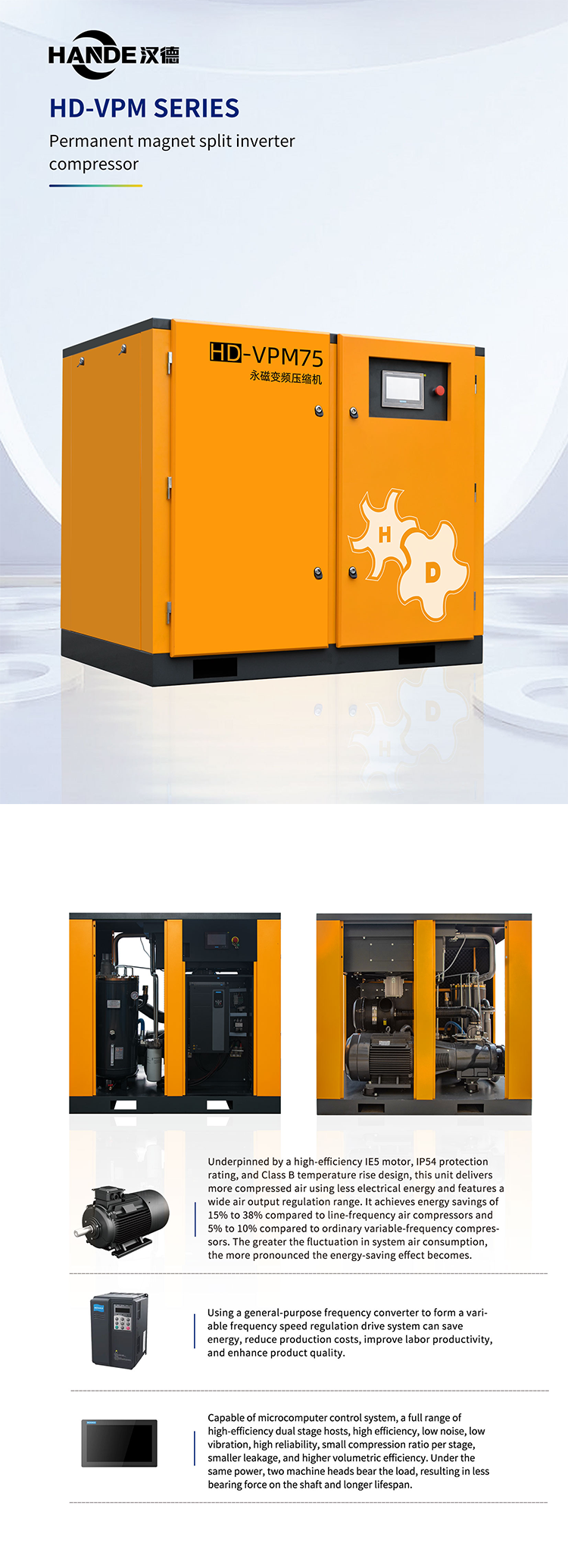

HD-VPM Series PM VSD

PRODUCT MODEL：HD-VPM8-HD-VPM315

Motor Power：7.5KW-315KW

Volume flow：0.7m³/min- 50.0m³/min

Working pressure：0.8Mpa-1.25Mpa

Note: Other special standards can be customized. For more details, please consult us

Product Information

Product Features

Adopting high-performance permanent magnet synchronous motors, which achieve 6%-7% higher energy efficiency compared to conventional asynchronous motors. Equipped with a specially designed IP55-rated variable frequency motor, offering dust proof and waterproof protection for harsh operating conditions, with an energy efficiency ratio improved by over 15%. Separate motor-compressor structure@significantly reduces vibration and noise. Constructed with special materials and sealing processes, providing high temperature and corrosion resistance, enabling stable operation under demanding environments such as high dust and high humidity. Modular design, independent maintenance of key components, greatly reducing maintenance costs.

Application industry

Mining operations; oceanographic engineering; Metallurgical casting: mechanical processing and manufacturing ; Tunnel construction; Factory pneumatic conveying and mixing; etc

HD-VPM Series PM VSD

Product Parameters:

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-VPM8	0.8	1.0	7.5/10	-5～45	Rp1/2	Air cooling	185	900×670×880
	1.0	0.9
	1.25	0.7
HD-VPM11	0.8	1.8	11/15	-5～45	Rp3/4	Air cooling	238	1080×750×1000
	1.0	1.5
	1.25	1.2
HD-VPM15	0.8	2.2	15/20	-5～45	Rp3/4	Air cooling	245	1080×750×1000
	1.0	2.0
	1.25	1.7
HD-VPM19	0.8	3.0	18.5/25	-5～45	Rp1	Air cooling	324	1080×850×1200
	1.0	2.7
	1.25	2.1
HD-VPM22	0.8	3.6	22/30	-5～45	Rp1	Air cooling	338	1080×850×1200
	1.0	3.2
	1.25	2.7

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-VPM30	0.8	5.0	30/40	-5～45	Rp1-1/2	Air cooling	470	1280×1030×1400
	1.0	4.5
	1.25	3.6
HD-VPM37	0.8	6.3	37/50	-5～45	Rp1-1/2	Air cooling	536	1280×1030×1400
	1.0	5.2
	1.25	4.5
HD-VPM45	0.8	7.3	45/60	-5～45	Rp1-1/2	Air cooling	520	1500×1000×1510
	1.0	6.3
	1.25	5.4
HD-VPM55	0.8	9.2	55/75	-5～45	Rp2	Air cooling	1020	1800×1280×1670
	1.0	8.2
	1.25	7.1
HD-VPM75	0.8	12.0	75/100	-5～45	Rp2	Air cooling	1120	1800×1280×1670
	1.0	11.0
	1.25	9.5

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-VPM90	0.8	15.0	90/120	-5～45	Rp2	Air cooling	1400	1950×1250×1810
	1.0	13.2
	1.25	11.5
HD-VPM110	0.8	19.8	110/150	-5～45	Rp2-1/2	Air cooling	1800	2300×1470×1840
	1.0	16.2
	1.25	14.1
HD-VPM132	0.8	23.2	132/175	-5～45	Rp2-1/2	Air cooling	2000	2300×1470×1840
	1.0	20.5
	1.25	17.4
HD-VPM160	0.8	26.6	160/200	-5～45	Rp2-1/2	Air cooling	2800	2500×1600×1900
	1.0	22.6
	1.25	19.5
HD-VPM185	0.8	30.4	185/250	-5～45	DN100	Air cooling	4300	3650×2100×2280
	1.0	26.0
	1.25	22.8

Model	Exhaust pressure	Displacement	power	Ambient temperature	Exhaust port pipe diameter	Cooling method	weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-VPM200	0.8	33.2	200/280	-5～45	DN100	Air cooling	4500	3650×2100×2280
	1.0	30.2
	1.25	25.8
HD-VPM220	0.8	36.7	220/300	-5～45	DN125	Air cooling	4800	3695×2100×2280
	1.0	33.2
	1.25	28.6
HD-VPM250	0.8	41.2	250/350	-5～45	DN125	Air cooling	5000	3695×2100×2280
	1.0	36.6
	1.25	34.0
HD-VPM280	0.8	45.0	280/375	-5～45	DN125	Air cooling	6600	4300×2365×2380
	1.0	40.8
	1.25	36.2
HD-VPM315	0.8	50.0	315/430	-5～45	DN125	Air cooling	6800	4300×2365×2380
	1.0	46.5
	1.25	40.0

Note: The company's products are constantly being optimized, and the parameters are subject to change without prior notice; Different voltage and other special models can be customized, please consult the business.
