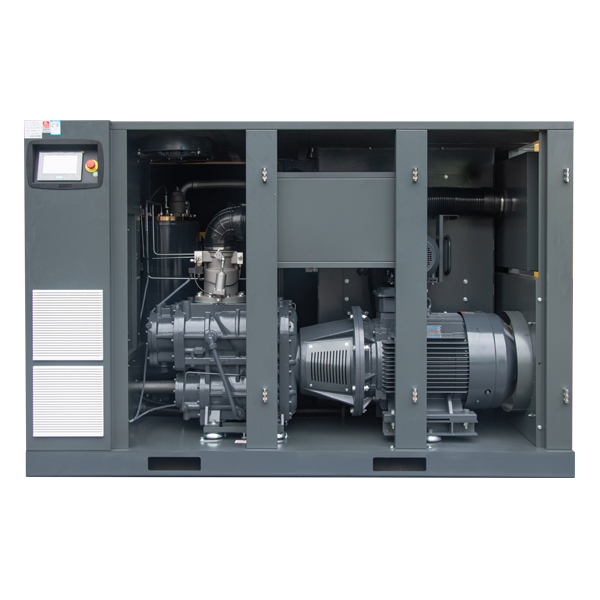

HD-EPM2T Series Dual-Stage PM VSD (Centrifugal Fan)

PRODUCT MODEL：HD-EPM2T30-HD-EPM2T315

Motor Power：30KW-315KW

Volume flow：5.2m³/min- 100.0m³/min

Working pressure：0.5Mpa-3.0Mpa

Note: Other special standards can be customized. For more details, please consult us

Product Information

Product Features

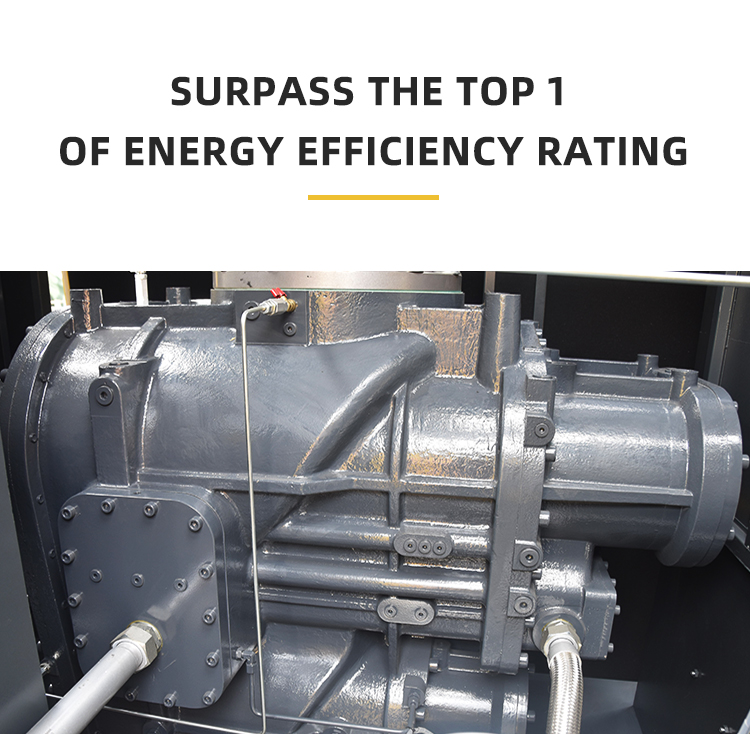

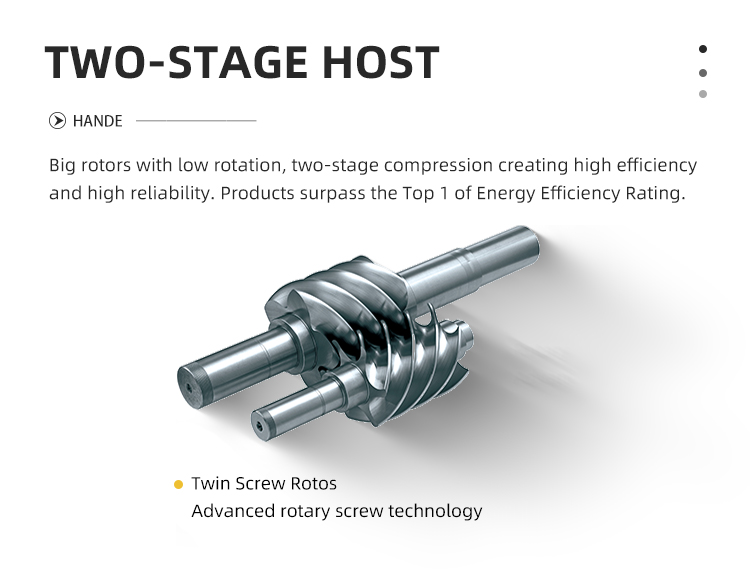

Independent intake and exhaust duct design:Precisely engineered airflow pathways ensure independent air intake for the filter, motor, and electrical cabinet. This prevents recirculation of heated air from within the enclosure, maintains intake air purity, reduces component wear caused by high temperatures and contaminants, and extends equipment service life. Multi-Stage High-Efficiency Cooler: A segmented design minimizes stress and deformation from thermal expansion and contraction, enhancing operational stability. It also simplifies disassembly and reassembly, reducing maintenance complexity and costs. Lift-and-Rotate Oil-Gas Separation Tank:All pipelines are integrated into the tank structure, eliminating fittings on the tank cover. This innovative design resolves the complexity of traditional piping connections. Advanced Compression Technology: By combining large-rotor, low-speed design principles with two-stage compression, the system achieves high efficiency even at low pressure ratios. The full product line exceeds China' s Grade 1 energy efficiency standards by 3%-5%, delivering energy savings of over 20%.

Application industry

Automotive/aerospace high-end manufacturing industry; Electronic semiconductor industry; Chemical/ pharmaceutical,food and beverage process industries; Metallurgical/glass manufacturing industry; Textile/paper industry; Special application industries such as data centers/hospitals,mines/Marine,etc

HD-EPM2T Series Dual-Stage PM VSD (Centrifugal Fan)

Product Specifications:

Model	Exhaust pressure	Displacement	Power	Ambient Temperature	Exhaust Port Diameter	Cooling Method	Weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-EPM2T37	0.5	8.2	37/50	-5～45	DN65	Air cooling	950	1950×1100×1390
	0.8	6.8			Rp1-1/2
	1.0	6.1
	1.25	5.2
HD-EPM2T45	0.5	10.5	45/60	-5～45	DN80	Air cooling	1950	2590×1500×1640
	0.8	8.2			Rp1-1/2		980	1950×1150×1390
	1.0	7.4
	1.25	6.5
HD-EPM2T55	0.5	14.3	55/75	-5～45	DN80	Air cooling	2040	2590×1500×1640
	0.8	11.6			DN65
	1.0	9.8
	1.25	9.0
HD-EPM2T75	0.5	18.8	75/100	-5～45	DN100	Air cooling	2630	2990×1700×1963
	0.8	15.6			DN65		2110	2590×1500×1640
	1.0	13.0
	1.25	11.0

Model	Exhaust pressure	Displacement	Power	Ambient Temperature	Exhaust Port Diameter	Cooling Method	Weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-EPM2T90	0.5	22.0	90/120	-5～45	DN100	Air cooling	2850	2990×1700×1963
	0.8	18.5			DN80		2580
	1.0	16.0
	1.25	14.3
HD-EPM2T110	0.5	26.0	110/150	-5～45	DN100	Air cooling	3120	2990×1700×1963
	0.8	21.0			DN80
	1.0	19.3
	1.25	17.0
HD-EPM2T132	0.5	31.8	132/175	-5～45	DN125	Air cooling	3880	3450×1880×2140
	0.8	24.7			DN80		3220	2990×1700×1963
	1.0	22.0
	1.25	19.5
HD-EPM2T160	0.5	37.0	160/200	-5～45	DN125	Air cooling	4750	3650×1880×2140
	0.8	31.0			DN100		4300
	1.0	28.0
	1.25	24.8

Model	Exhaust pressure	Displacement	Power	Ambient Temperature	Exhaust Port Diameter	Cooling Method	Weight	Dimensions
	Mpa	m³/min	KW/HP	℃	inch		Medical history	L×W×H(mm)
HD-EPM2T185	0.5	46.5	185/250	-5～45	DN150	Air cooling	5900	3820×1980×2230
	0.8	35.5			DN100		4850	3650×1880×2140
	1.0	31.0
	1.25	27.1
HD-EPM2T200	0.5	53.0	200/280	-5～45	DN150	Air cooling	6000	3820×1980×2230
	0.8	40.0			DN125		5200
	1.0	35.5
	1.25	30.5
HD-EPM2T220	0.8	45.0	220/300	-5～45	DN125	Air cooling	5350	3820×1980×2230
	1.0	38.5
	1.25	34.2
HD-EPM2T250	0.8	52.0	250/350	-5～45	DN125	Air cooling	6150	3820×1980×2230
	1.0	45.0
	1.25	38.8

Note: Our products are subject to continuous optimization. Specifications are subject to change without notice. Custom configurations for different voltages and other special models are available upon request. Please contact our sales team for details.
